Mobile Signal Monitoring System
Application

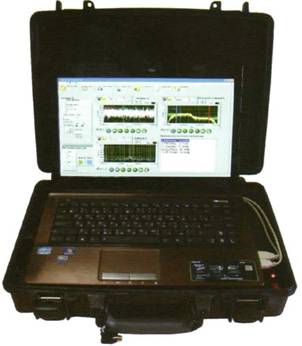

The "TMPSYS-PANO" Mobile Signal Monitoring System is used for search and identification of various information leakage sources. It can detect and locate a wide variety of unauthorized covert surveillance devices such as radio microphones, telephone transmitters, power line and wire link transmitters etc. both in manual and automatic modes.
Technical Characteristics
- Frequency range from 9 kHz to 43 GHz
- Dynamic range up to 104 dB
- Average noise level at 43 GHz with LNA -147 dBm/Hz
- Basic uncertainty of amplitude measurements ± 0.50 dB
- I/Q demodulation bandwidth 15 MHz
- Support of wide range of precision USB power sensors
- Battery operation time ≥2.5 hours
- Modem interfaces USB,LAN.
Main Competitive Advantages
- The broadest frequency coverage available in a mobile system;
- Possibility to create a bank of spectrum traces on a PC for automatic search and identification the signal of interest;
- Measurement analysis in several channels using a controlled antenna switch;
- Identification of device types connected to the line under test and possibility to store new data to the bank of such devices;
- Cancellation of unwanted spurious signals caused by line discontinuities and pickup of interference;
- Built-in software tools for creating reports based on the measured data.
